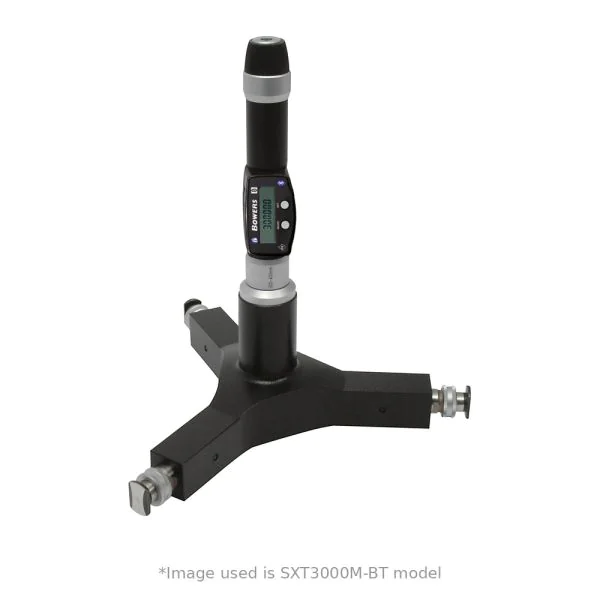

Bowers SXT4000M-BT XT500 Large Diameter Digital Bore Micrometer Set, Range 400-500mm, Resolution 0.001mm, Bluetooth, with Setting Ring

The Bowers SXT4000M-BT is a set version of the Bowers XT500 large diameter 3-point bore micrometer, designed for internal diameters between 300 and 500 mm. A constant-force digital readout keeps the measuring pressure the same throughout the measurement, and radiussed tool-steel anvils give optimum centring in the part. Anvil sets come in 25 mm steps, each made to its exact toleranced size; the 300-325 mm anvils are the master reference set used to set the gauge in the 300 mm ring, so the other anvil sets can be fitted without re-setting.

Supplied with a 300 mm setting ring, which sets the gauge for the full 300-500 mm range.

• Measuring range: 400-500 mm
• Anvil sets supplied: 300-325 (master), 400-425, 425-450, 450-475 and 475-500 mm
• Accuracy: 15 µm
• Measuring depth: 120 mm
• Setting ring: 300 mm, included
• Single 300 mm setting ring covers the full 300-500 mm range
• Repeatability 3 µm
• Resolution 0.01 / 0.001 mm, metric/inch switchable
• IP67 electronics
• Proximity output with built-in Bluetooth
• Extensions available for deeper bores
• Supplied in a fitted case

Made in Britain by Bowers Group.
